Description of the motor 60STH86:
1. High Performance: Our JQ60STH86-2008AF/1.8 degree 60mm 2phase Square hybrid stepper motor NEMA24 is designed for optimal performance, with a powerful motor and precision engineering to provide smooth and consistent motion. It is ideal for various industrial and automation applications.
2. High Torque: Our motor is equipped with a high torque feature that ensures efficient power transfer and strong endurance. It guarantees consistent performance even under heavy loads, making it suitable for demanding applications.
3. Environmentally Friendly: Our motor complies with CE, ISO, and RoHS certification, ensuring it meets stringent safety and quality standards. This makes it an environmentally friendly choice for conscious consumers and businesses.
4. Robust Construction: Designed with a square shape, the hybrid stepper motor is built to withstand harsh environments and heavy-duty applications. Its durable construction guarantees long-lasting performance and reliability.
5. Versatile Compatibility: The JQ60STH86-2008AF motor is compatible with a wide range of devices and systems, making it a versatile choice for various applications. It is suitable for use in automation equipment, robotics, 3D printing, and other industrial machinery.
General Specification:
| Item | Specification |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 75N( 20mm from the flange) |
| Max.Axial Force | 15N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electrical Specifications:
| Model | | Current/ Phase | Resistance/ Phase | Inductance/ Phase | Holding Torque | Detent torque | #of Leads | Rotor Inertia | Length | Weight |
| Single shaft | | A | Ω | mH | N.m | N.m | # | g-cm² | mm | kg |
JQ60STH86-2008AF | unipolar | 2.0 | 3 | 6.8 | 2.1 |
0.12 |
8 |
840 |
88 | 1.4 |
| parallel | 2.8 | 1.5 | 6.8 | 3.0 |
| series | 1.4 | 6 | 27.2 | 3.0 |

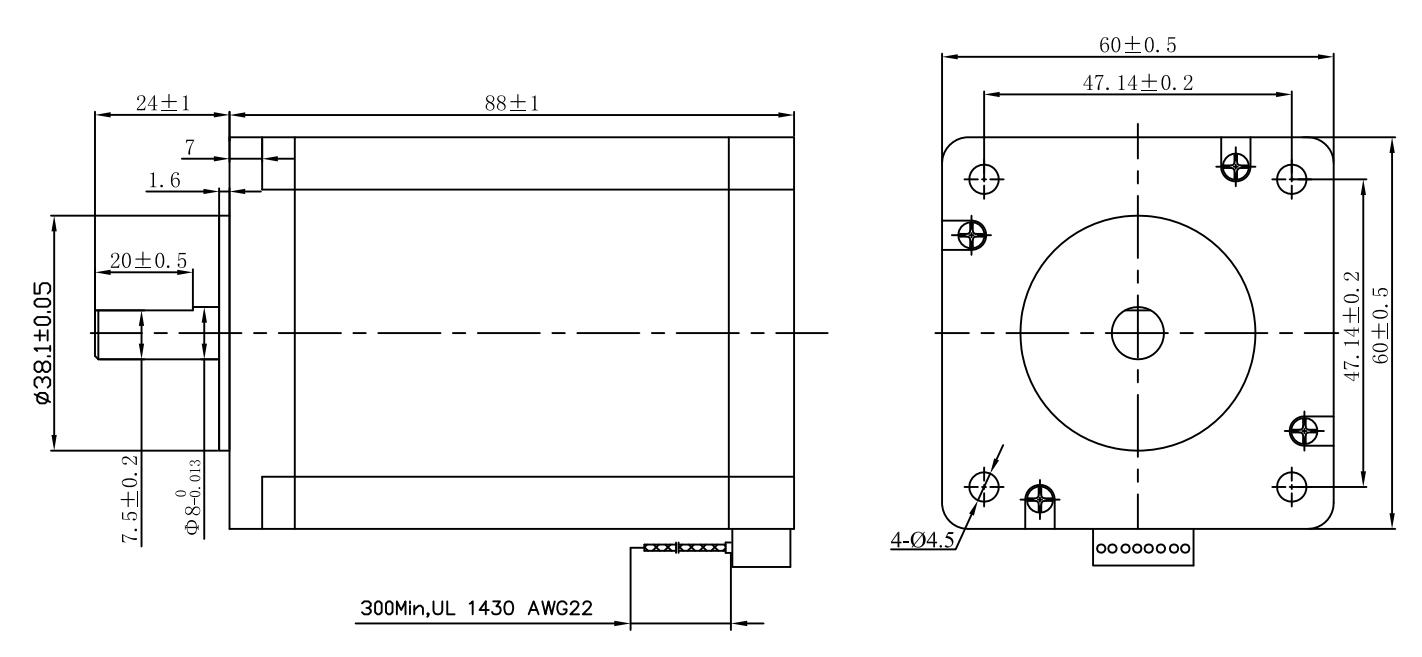

Dimensions(mm):

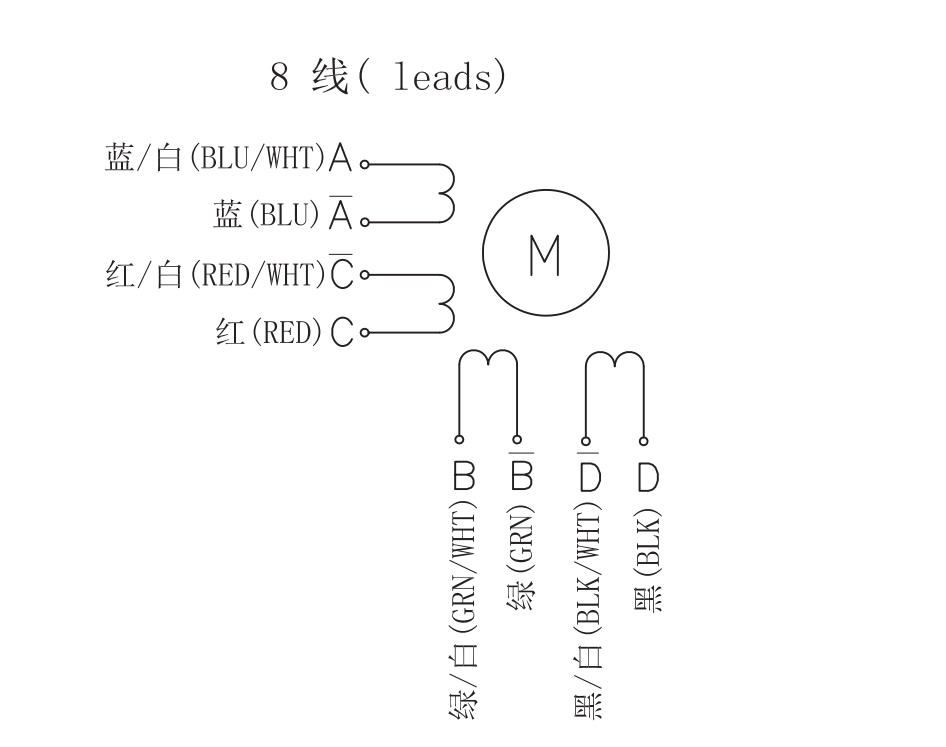

Wiring Diagram:

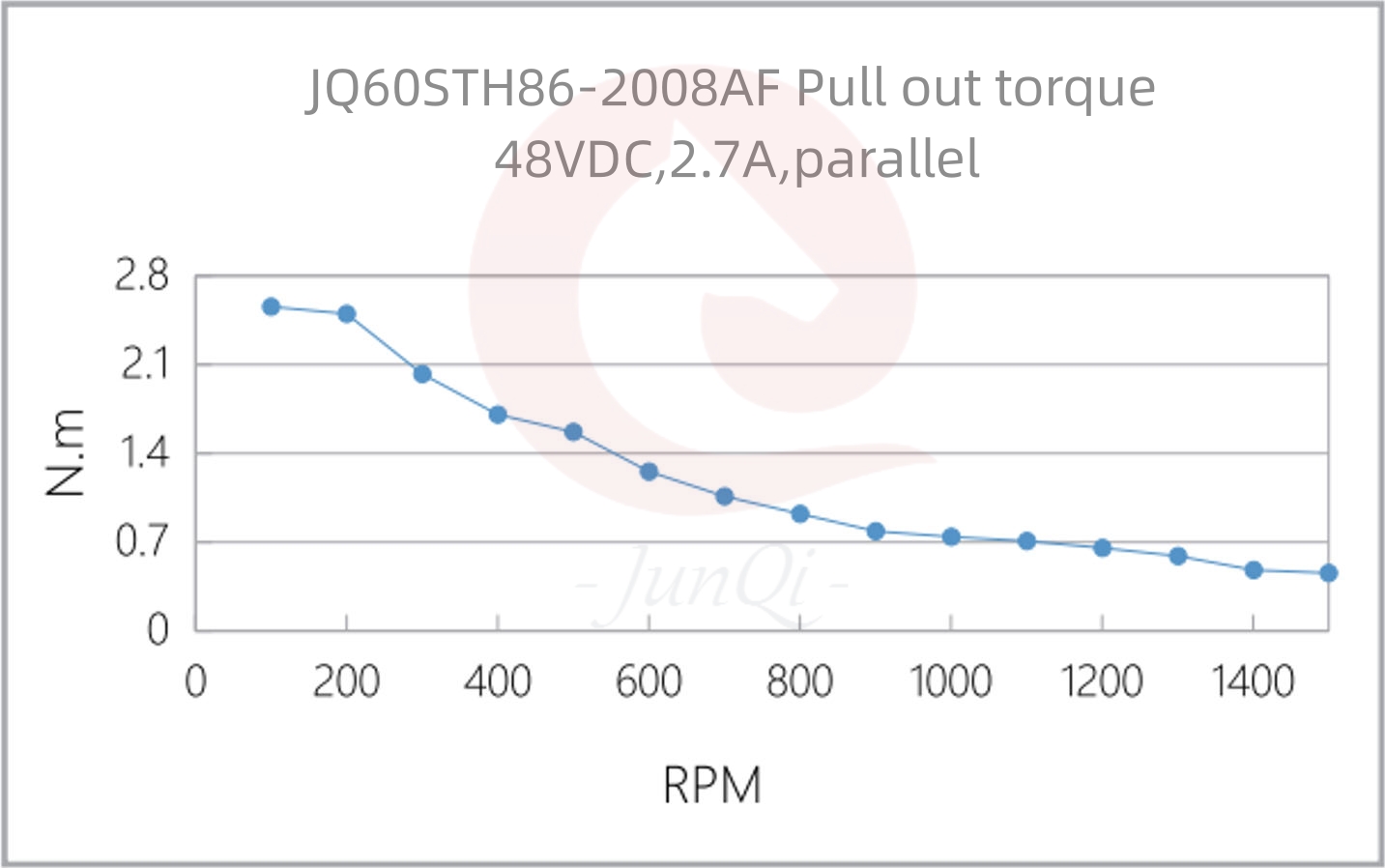

Speed-Torque Curve:
Motor Application Fields:
Medical: Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift
Textile: Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.
Industrial Control: CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.
Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.
Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System
Office Automation: Printer, 3D Printer
Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System
More information, please directly contact with us via email: ivanzhu@junqitrading.com
Product Tags:
|
|
JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment Images
|
