JQ-P4504 DC24V 8M 12LPM 90 degree thread Brushless DC Micro Circulation Water Pump For Water vending machine

JQ-P4504 DC24V 8M 12LPM Brushless DC Micro Circulation Water Pump For Water vending machine

Technical Parameters:

1. Rated Voltage: DC24V

2. Rated Power: 30W

3. Max.lift: 8m

4. Max.flow: 12LPM

5. Applicable water temperature: 0~60℃

6. Protection level: IP67

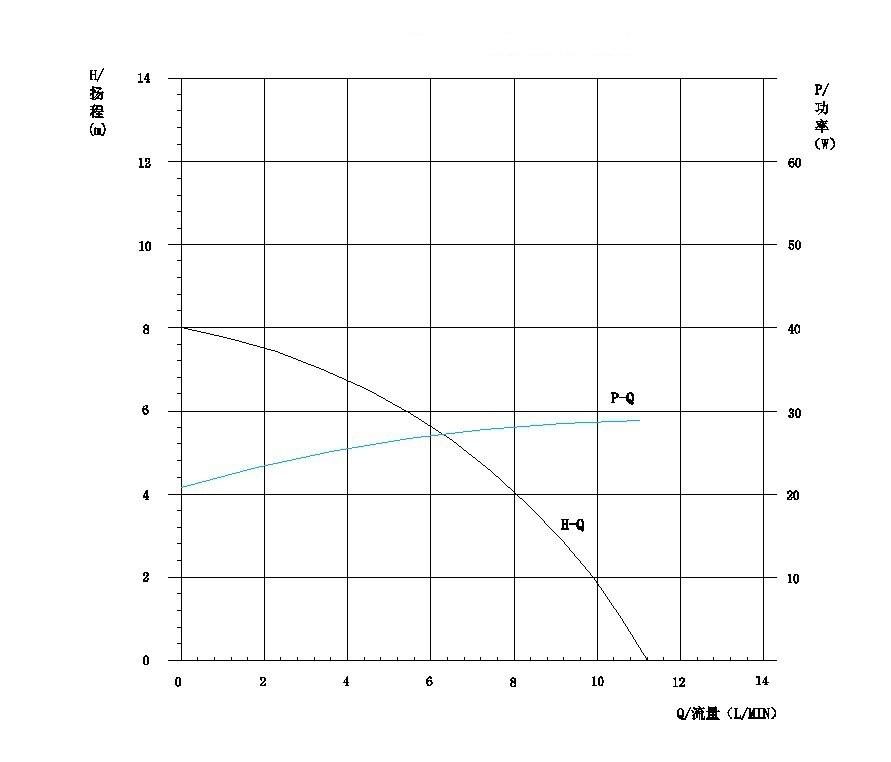

Pump working Performance Curve:

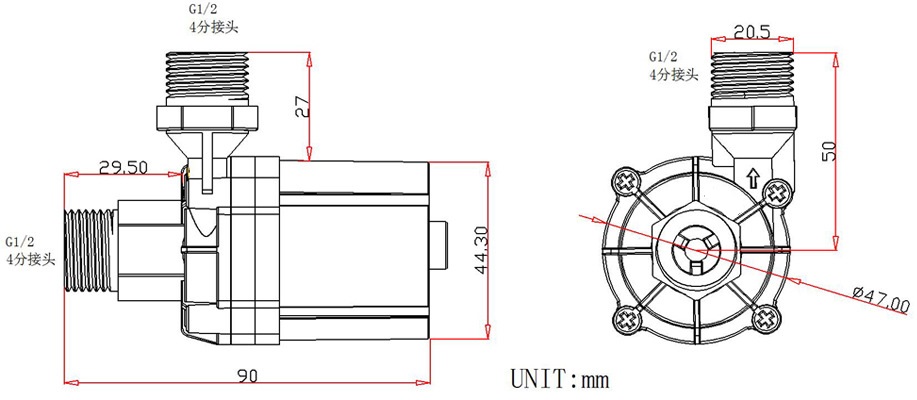

Dimensions(mm):

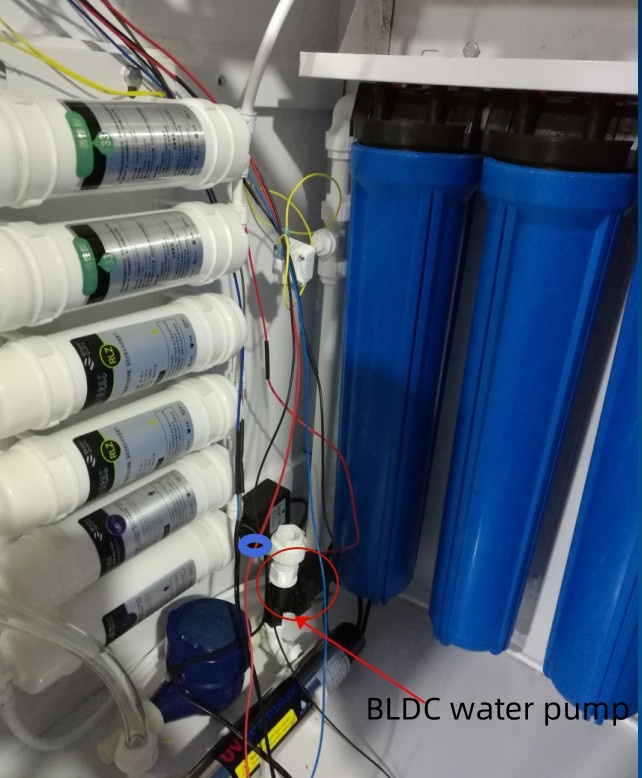

Application:

Widely used for Medical equipment, Beauty equipment, Juice machine, milk machine, hot water bottle, water dispenser, coffee machine,etc..

FAQ:

How can I choose the pump?
We can study together for the using purpose, specification in the working condition, then we will suggest you the most suitable one from our products range.

What's your product MOQ?
We accept sample order, the MOQ can be negotiated.

How long is your delivery time?
Sample order within one week. Bulk order within 25 days. If the pumps in stock, within2 days.

How long is your warranty of pump?
Warranty is one year, can be repaired free of charge

What's the payment method?
Paypal, T/T, Western Union, etc...

What certificates have your pumps passed?
All our products have passed CE, RoHs, Reach. etc...

How do you ship the goods?
Shipping by express (sample order) and by air or by sea (bulk order). Pls contact us before order because the freight fee base on quantity
