12V 42mm Nema 17 Stepper Motor

Brand Name : Junqi

Model Number : JQ42BLA01,JQ42BLA02,JQ42BLA03,JQ42BLA04

Certification : CE, RoHs, REACH

Place of Origin : Changzhou,China

MOQ : 5pcs

Price : USD20-60/PC Negotialbe

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000set/month

Delivery Time : 4weeks after get payment (base on order),

Packaging Details : CTN

Type : Brushless dc motor

Frame Size : 42mm

Winding Type : Star

Rated Torque : 36mN.m/50mN.m

Number of Poles : 10

Number of Phase : 3

Rated Voltage : 24VDC

Body Length : 40mm/60mm/80mm/100mm

Rated Speed : 3000rpm

Usage : Automotive

Shape : Square

Contact Now

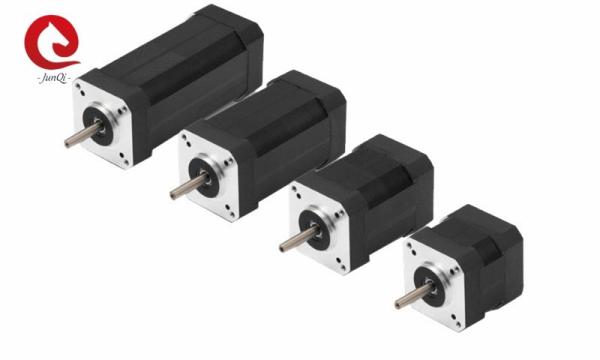

NEMA17 42mm BLDC Motor, JQ42BLA Series 24VDC, 3000RPM Max torque360mN.m brushless dc motor

Quick Details:

Model

Frame

Size

Rated

Power

W)

Body

Length

(mm)

Rated

Voltage

(VDC)

Rated

Torque

(Nm)

Rated

Current

(A)

Rated

Speed

(RPM)

JQ42BLA01 42mm 22 40.3 24 0.07

1.3

3000
JQ42BLA02 42mm 50 60.3 24 0.16 2.65 3000
JQ42BLA03 42mm 81 80.3 24 0.3 4.3 3000
JQ42BLA04 42mm 113 100.3 24 0.36 5.8 3000

Features:

1. Wide speed range, Flat torque

2. Excellent Speed Stability

3. Compact and High Power

4. High Efficiency and Energy-Saving.

General Specification:

Item Specification
Winding Type Star Connection
Hall Effect Angle Electrical Angle of 120 degree
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max.Radial Force 28N( 10mm from the flange)
Max.Axial Force 10N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B

Electric Connection:

Type Color Functions

UL1061

AWG28

Red Vcc
Blue U(Hu)
Green V(Hv)
White W(Hw)
Black GND

UL1061

AWG24

Yellow Phase U
Red Phase V
Black Phase W

Electricl Specification:

Item Unit JQ42BLA01 JQ42BLA02 JQ42BLA03 JQ42BLA04
Number of poles 10 10 10 10
Number of Phase 3 3 3 3
Rated Voltage VDC 24 24 24 24
Rated Torque mN.m 70 160 260 360

Continuous

stall torque

mN.m 81 190 300 410
Rated Speed RPM 3000 3000 3000 3000
Rated Power W 22 50 81 113
Peak Torque mN.m 210 480 780 1080
Peak Current A 3.9 8 13 17.5
Line to Line resistance ohms@20℃ 2.6 1.1 0.7 0.5
Line to Line Inductance mH 1.83 0.96 0.58 0.44
Torque Constant N.m/A 0.054 0.06 0.06 0.062
Back EMF Vrms/KRPM 4.06 4.5 4.5 4.6
Rotor Inertia g.cm2 48 101 154 207
Motor Length mm 40.3 60.3 80.3 100.3
Weight kg 0.26 0.46 0.65 0.85

**Notes: The motor can be designed &manufactured with customized request!!

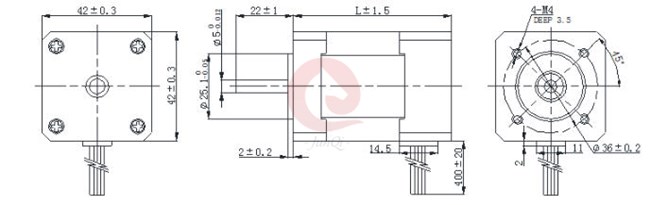

Mechanical Size:

12V 42mm Nema 17 Stepper Motor


We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

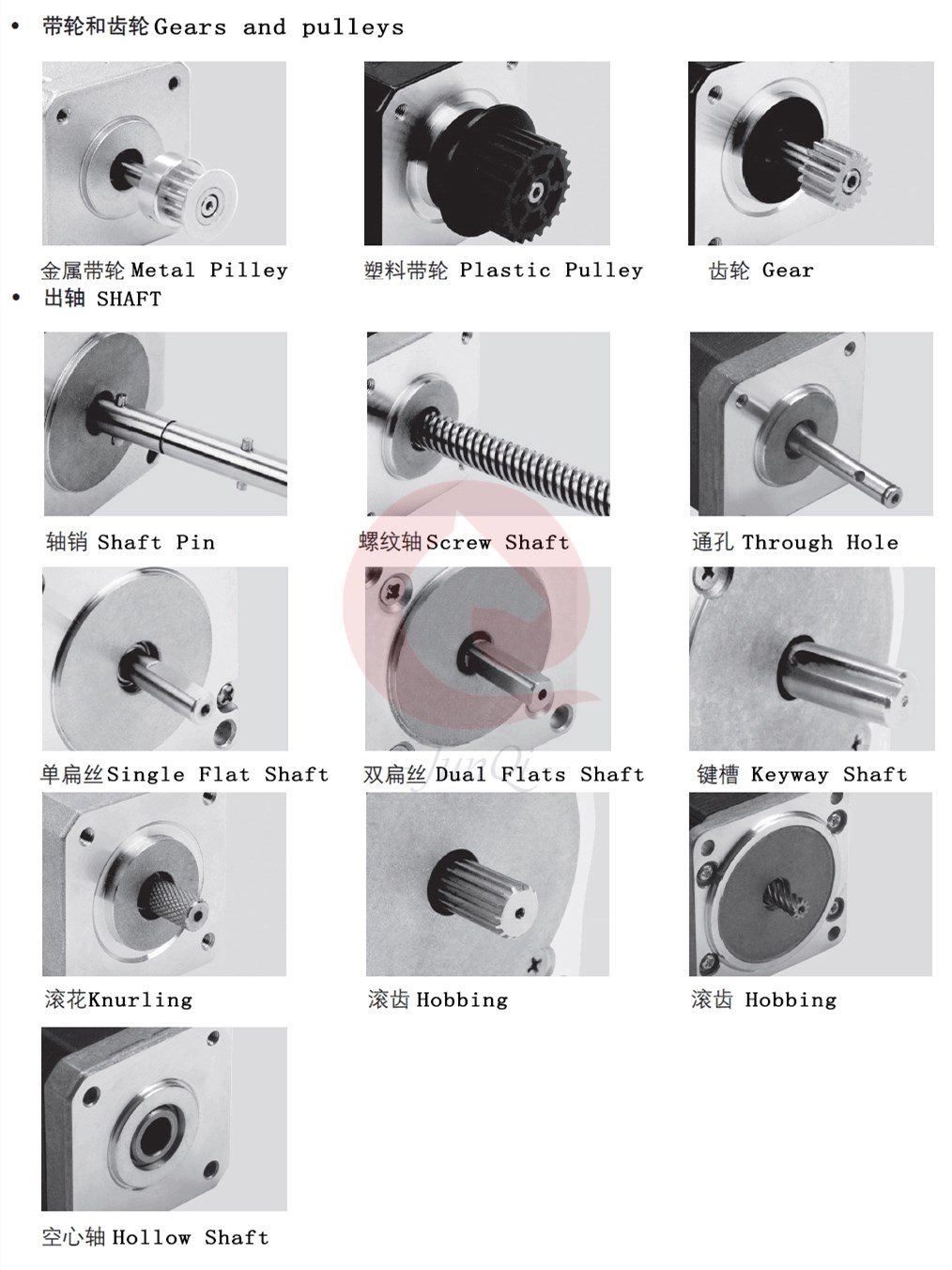

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

12V 42mm Nema 17 Stepper Motor

Professional Factory:

12V 42mm Nema 17 Stepper Motor

Certificate Photos :

12V 42mm Nema 17 Stepper Motor

Packing:

12V 42mm Nema 17 Stepper Motor

Transportation:

12V 42mm Nema 17 Stepper Motor

Motor Application Fields:

12V 42mm Nema 17 Stepper Motor12V 42mm Nema 17 Stepper Motor12V 42mm Nema 17 Stepper Motor

FAQ:

Q: How long is the lead time of orders?

A: Lead time : 4 weeks after receive the deposit

Q: What is your trade Assurance?

A: 100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q: Do You Make Customized Product?

A: Yes,We Accpet IT.

Q: About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q: What is the payment term?

A: T/T and Paypal is used more,please contact us for details

Q: What is the quality level of your product?

A: We produce good quality, refuse to produce low quality.

Our motor products contain range:

12V 42mm Nema 17 Stepper Motor12V 42mm Nema 17 Stepper Motor12V 42mm Nema 17 Stepper Motor
